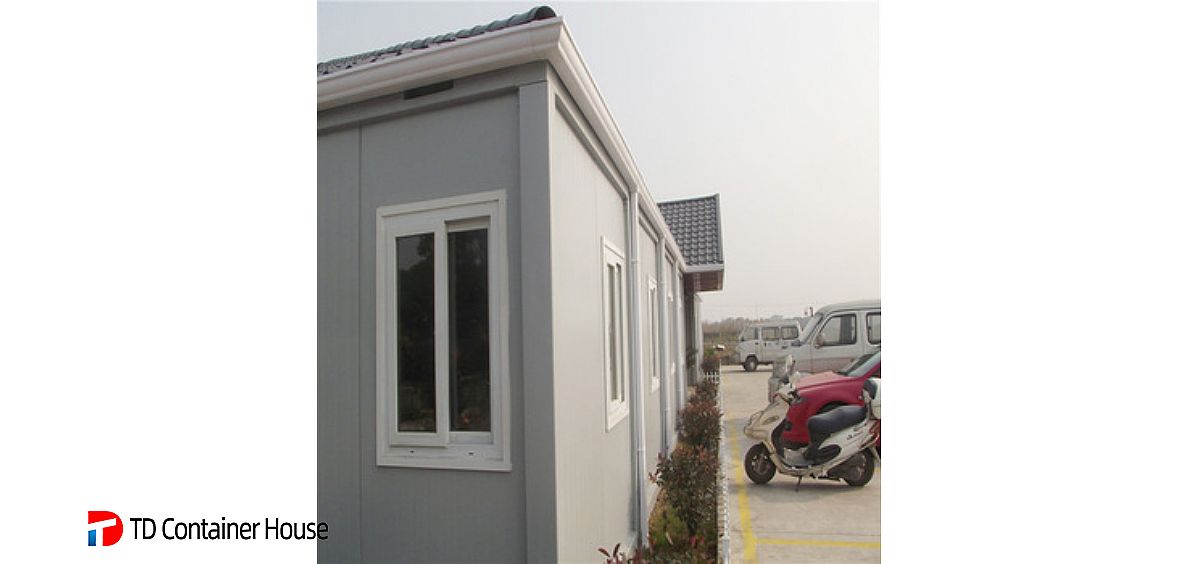

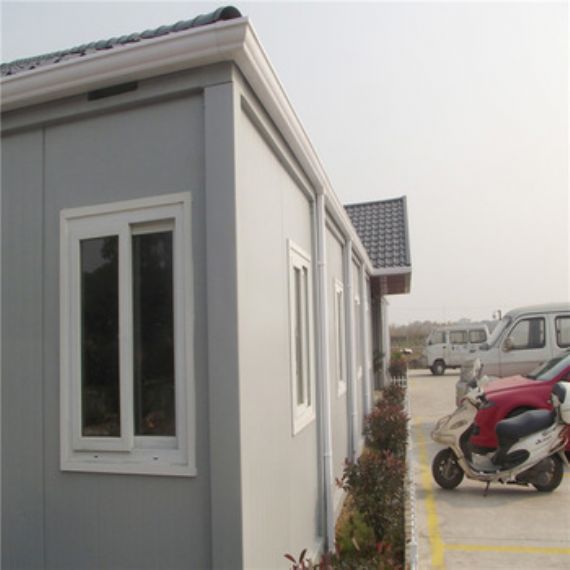

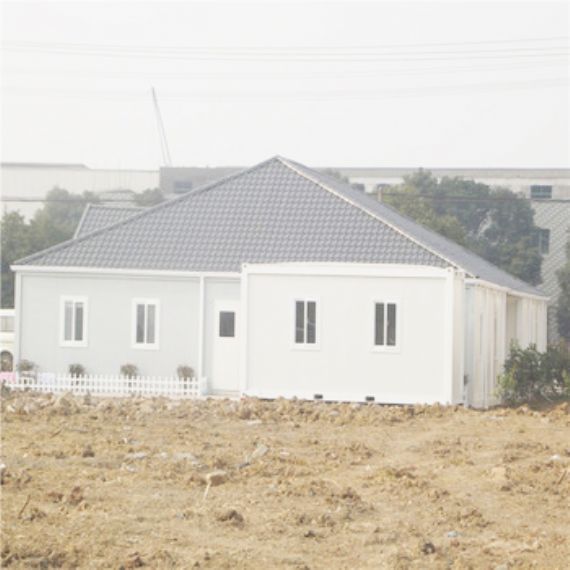

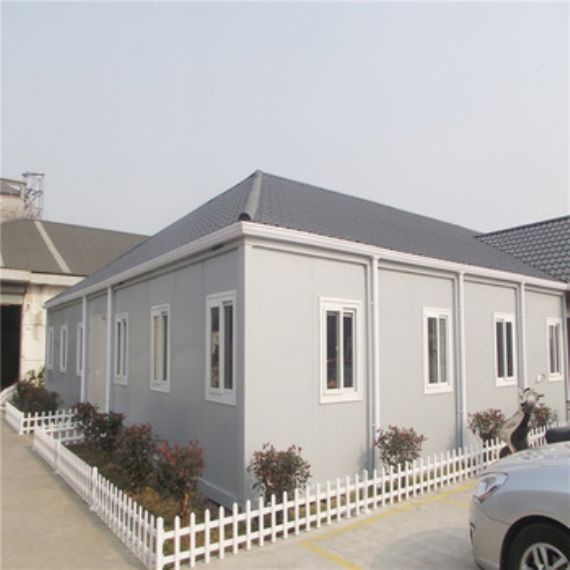

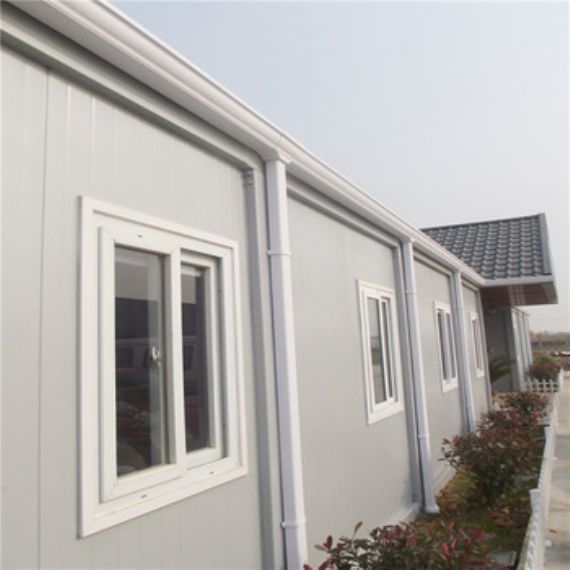

TD container built a flat pack container house for its own use. These container offices have been in use for over ten years and are currently undamaged and ready for further use. The exterior of the office is made of gray wall panels and a herringbone glazed tile roof. The interior includes offices, reception rooms, conference rooms, corridors, and toilets.
| 10ft container house | 20ft container house | 40ft container house | |
|---|---|---|---|
| Size | L3028*W2438*H2896mm | L6058*W2438*H2896mm | L12100*W2438*H2896mm |
| Area | 7.5㎡ | 15㎡ | 30㎡ |
| Weight | 800KG | 1500KG | 3000KG |
| Life span | 15-20 years | ||
| Roof | (1)Covering: 0.5mm thickness steel panel (Hot dip galvanized anti-corrosion) (2)Frame: 3mm hot galvanized steel beam. (3)Column: four 3mm galvanized steel columns with water fall tube (4)Insulation : 75mm rock wool insulation layer (5)Ceiling: single layer panel ceiling or sandwich panel ceiling |
||
| Floor | (1)Seal panel: 0.5mm color steel panel(Hot dip galvanized anti-corrosion) (2)Frame: 3mm hot galvanizing steel structure (3)Insulation: 75mm rock wool insulation layer (4)Floor: 18mm fiber cement floor (5)Floor covering: PVC covering 1.8mm/laminate floor/tile floor |
||
| Wall | (1)Metal covering: 0.4mm steel panel in two sides(Hot galvanized anti-corrosion) (2)Size: 2650 mm x 1150mm x 50mm/60mm/75mm/100mm/120mm thickness (3)Insulation: Rock wool/EPS/glass wool/PU (4)Color: White grey (RAL 9002) or customized |
||
| Door | (1)Steel door/sandwich panel door/glass door or customized (2)Size: 830*2035mm or customized |
||
| Window | (1)Aluminum alloy frame/PVC frame (2)5mm single layer glass/5+5+9mm tempered glass (3)Size: 800*1100mm or customized |
||
| Electric system | Electric wire, LED lights, switch, sockets, distribution box. Customized. | ||
| Drainage | Drain pipe and floor drain | ||
| Usage | Office, accommodation, toilet, kitchen, gym, etc. | ||
| Color | Customized | ||
| Certificate | ISO, CE | ||
| Advantage | Flexible layout, quick install, flat pack save freight cost, structure safe and stable, Anti-seismic, wind resistance, waterproof, fireproof, anti-corrosion. | ||
| FLEXIBLE COMBINATION | Stand alone, or combined horizontally to create a big open space, or stacked vertically up to 3 stories. |
| FULL-RANGE FACILITIES | Different types of roofs, corridors, canopy, and staircases are available; specialized bathroom and kitchen containers can be decorated both inside and outside. |
| FAST ASSEMBLING | Averagely 4 workers can erect 1 container within 3 hours. The container also can be assembled in the factory and then transferred to the site. |
| SAFE AND DURABLE | Over a 15-year lifetime, seismic resistance to 8 degrees, wind resistance to 11 degrees. |
| EASY TRANSPORTING | 4 units can be packed in a 20' shipping container, which can save 3/4 freight cost, and 6 units can be packed into a 40' high-cube shipping container. |
| FLEXIBLE TRANSPORT METHOD | Different transport methods are available to be chosen according to the distance to the destination and site installation conditions. Options are transported as a whole piece (recommended for bathroom containers), 4 units packed horizontally as one piece, and 6 units packed vertically into a 40' high-cube shipping container. |
Here is a selection of some of the products and projects we have in Flat Pack Container
