Color Customized Flat Pack Container Restaurant in New Zealand

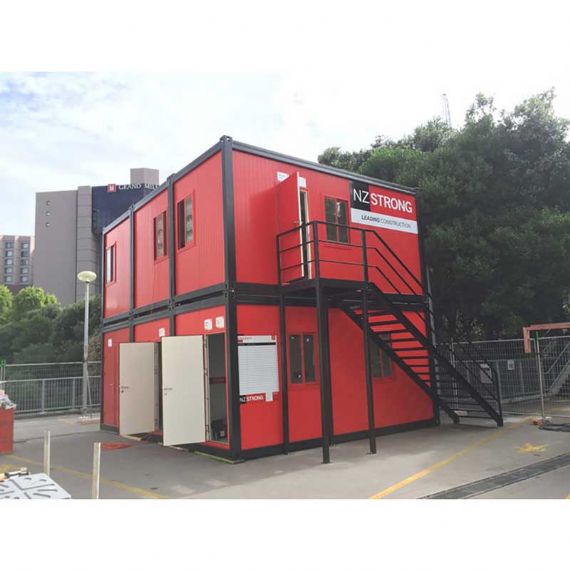

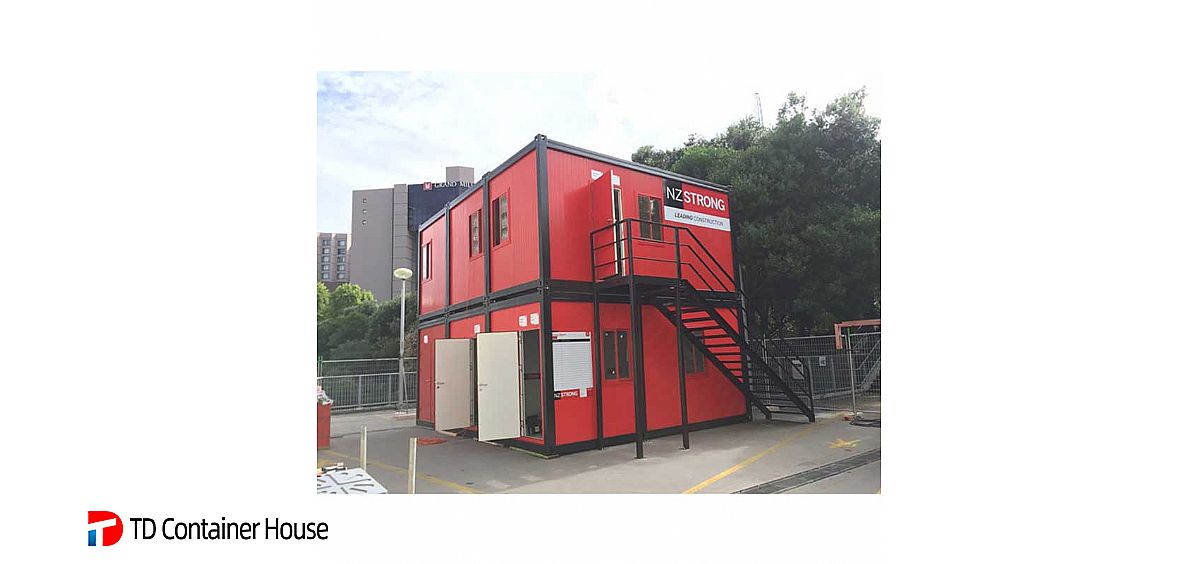

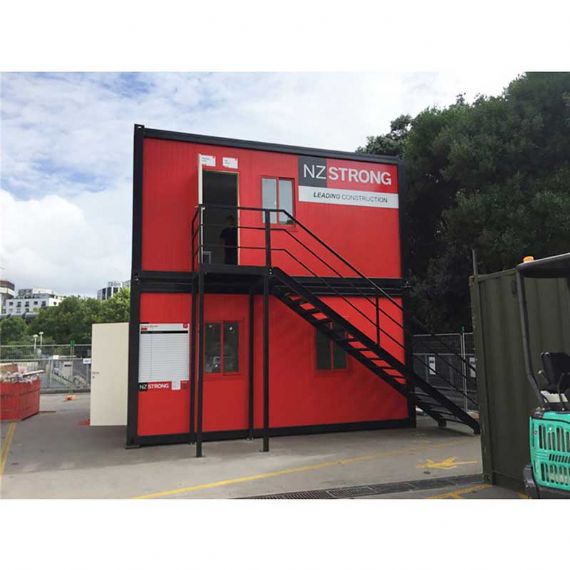

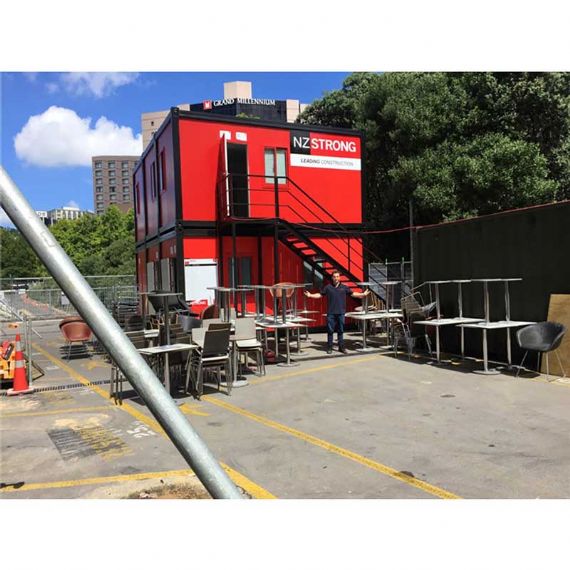

TD container house exported a 20ft standard-size shipping container restaurant to New Zealand. The exterior is made of custom red sandwich panel wall panels with black frames and a logo and pattern attached to the walls. The house has two floors, with access to the second floor via a steel staircase.
| 10ft container house | 20ft container house | 40ft container house | |
|---|---|---|---|
| Size | L3028*W2438*H2896mm | L6058*W2438*H2896mm | L12100*W2438*H2896mm |
| Area | 7.5㎡ | 15㎡ | 30㎡ |
| Weight | 800KG | 1500KG | 3000KG |
| Life span | 15-20 years | ||
| Roof | (1)Covering: 0.5mm thickness steel panel (Hot dip galvanized anti-corrosion) (2)Frame: 3mm hot galvanized steel beam. (3)Column: four 3mm galvanized steel columns with water fall tube (4)Insulation : 75mm rock wool insulation layer (5)Ceiling: single layer panel ceiling or sandwich panel ceiling |
||
| Floor | (1)Seal panel: 0.5mm color steel panel(Hot dip galvanized anti-corrosion) (2)Frame: 3mm hot galvanizing steel structure (3)Insulation: 75mm rock wool insulation layer (4)Floor: 18mm fiber cement floor (5)Floor covering: PVC covering 1.8mm/laminate floor/tile floor |
||
| Wall | (1)Metal covering: 0.4mm steel panel in two sides(Hot galvanized anti-corrosion) (2)Size: 2650 mm x 1150mm x 50mm/60mm/75mm/100mm/120mm thickness (3)Insulation: Rock wool/EPS/glass wool/PU (4)Color: White grey (RAL 9002) or customized |
||
| Door | (1)Steel door/sandwich panel door/glass door or customized (2)Size: 830*2035mm or customized |
||
| Window | (1)Aluminum alloy frame/PVC frame (2)5mm single layer glass/5+5+9mm tempered glass (3)Size: 800*1100mm or customized |
||
| Electric system | Electric wire, LED lights, switch, sockets, distribution box. Customized. | ||
| Drainage | Drain pipe and floor drain | ||
| Usage | Office, accommodation, toilet, kitchen, gym, etc. | ||
| Color | Customized | ||
| Certificate | ISO, CE | ||
| Advantage | Flexible layout, quick install, flat pack save freight cost, structure safe and stable, Anti-seismic, wind resistance, waterproof, fireproof, anti-corrosion. | ||
| FLEXIBLE COMBINATION | Stand alone, or combined horizontally to create a big open space, or stacked vertically up to 3 stories. |
| FULL-RANGE FACILITIES | Different types of roofs, corridors, canopy, and staircases are available; specialized bathroom and kitchen containers can be decorated both inside and outside. |
| FAST ASSEMBLING | Averagely 4 workers can erect 1 container within 3 hours. The container also can be assembled in the factory and then transferred to the site. |
| SAFE AND DURABLE | Over a 15-year lifetime, seismic resistance to 8 degrees, wind resistance to 11 degrees. |
| EASY TRANSPORTING | 4 units can be packed in a 20' shipping container, which can save 3/4 freight cost, and 6 units can be packed into a 40' high-cube shipping container. |
| FLEXIBLE TRANSPORT METHOD | Different transport methods are available to be chosen according to the distance to the destination and site installation conditions. Options are transported as a whole piece (recommended for bathroom containers), 4 units packed horizontally as one piece, and 6 units packed vertically into a 40' high-cube shipping container. |
